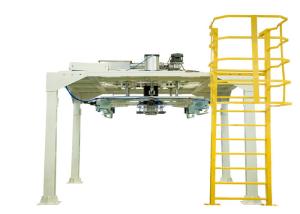

Duster Port Reserved Jumbo Bag Packing Machine In Mineral Products Industry , 900 Kg Sack
Details
The ton bag packaging machine is composed pneumatic bag-clamping system, inflatable and gas recovery unit, material feeding measuring control unit, hydraulic unit and electric control.
As one of the large weighing and packaging machine with multiple functions of the integrated electric weighing, automatic bag-releasing, and dust collecting, it is used for packaging ton-bag material.
SXP1000 Auto Industrial Packaging Machine is features of advanced automation, high packaging precision, adjustable packaging speed, superior structure, and unique hydraulic system, which enables to deal with ton-bag package at ease, convenient for oncoming process.
Application Range
Widely applied to ores, chemical construction material, grain, feed stuff etc.
Flowing Processes
Bag supplied & clamped by manual→ Automatic filling→ Automatic weighing→ Automatic bag conveyer
The jumbo bag packing machine working process is: Manual giving the jumbo bag to the packing machine bag clamper then touch the proximity switch then will automatic bag clamped the bag and locked the 4pcs loop-automatic feeding the materials-automatic weighing-automatic discharge the materials into the jumbo bags-well finished jumbo bag will conveyor out from the packing machine by the big heavy conveyor-move by the forklift.
The materials by the wheel loader dump to the feeding hopper then by the bucket elevator conveying to the jumbo bag packing machine for feeding, weighing, packing and discharge into 300kg-2000kg jumbo bags, the finished filling jumbo bag will conveying out from the packing machine by the heavy duty conveyor, then move by your forklift.
Technical Parameters
| Packaging Materials | Particle Materials |
| Packaging Model | 1T |
| Packaging Accuracy | ±0.3% |
| Qualification | ≥99% |
| Packaging Speed | 8-10 Bag/h |
| Weighing Type | Hanging Weighting, automatic constant speed bag dropping |
| Packaging Bag Type | Foursquare bag hanging, artificial tying |
| Power | Power 380V AC 50HZ |
| Air Source Pressure | 0.6-0.8MPa |
| Noisy | ≤85db |
| Materials of Machine | SS used for area in direct touch with materials, and rest carbon steel spray treatment |
| Utility Factor | Over 80% (rest for regular maintenance,breakdown maintenance) |
| Working Environment Temp& Moisture | -30～40℃；Moisture≦50% |
Features
Tailored to characteristics of powder material, granule material and different requirements of factory.
The machine adopts different classifying and feeding types (direct flow, conveyor, vibration and belt) according to different material. It has features of stable performance, high packaging precision, and high-speed packaging.
High stability during control process with programmable electric control system.
Advanced dust collecting design reduces greatly dust pollution upon working circumstance. Electric platform scale like weighing system adopts Board-characteristic adjusting, and working parameter setting, has advantages of accumulated weight display, automatic peeling, automatic falling correction, high sensitivity, and strong anti-interference capacity.
Meters equipped with communication ports, available for computer connecting and networking, capable of real time monitoring and network management.
Machine Parts List
| No | Name | Manufacturer | QTY |
| 1 | Control system | Canada Germain or Simons | 1 |
| 2 | Weighing controller | Canada Germain or Simons | 1 |
| 3 | Weighing sensor | Mettler Toledo | 4 |
| 4 | Approach switch | Schneider | 1 |
| 5 | Optoelectronic switch | Schneider | 1 |
| 6 | Contactor & breaker | Schneider | 10 |
| 7 | Other low-pressure component | Schneider | 1batch |
| 8 | Motor | CPG, China | 1batch |
| 9 | Cylinder | AIRTAC | 1batch |
| 10 | Magnetic valve | AIRTAC | 1batch |
| 11 | Other pneumatic element | AIRTAC | 1batch |
Flowing chart:
Raw materials-cutting-drilling-welding-folding-polishing-rust prevention-paint spraying- assembling-
testing-packaging and transport-after service
Packaging and Shipping
Export standard plywood package are supplied with well packed. we can make the packages according to customer's request. Sea packages or Air packages are both available.
Usually to ship by sea from port Shanghai.
The packing machine before sent to you will installation and testing welled then whole set packed in the big wooden box then in container.
When you received the packing machine, you no need installation again, connect your electric wire and air source to the packing machine then can working.
After-sale Service
We aim to best serve our clients’ needs. So, we promise the following clauses on condition of establishing business relationship with you
1) The machine shall be guaranteed by the seller against poor materials, poor performance and poor workmanship for a period of one year from the date of commissioning. During this guarantee period, the seller will provide the buyer with free maintenance and free spare parts that caused by the machine’s quality upon receipt of advice
2) The seller will supply repair service for three years on condition that the buyer takes on all costs of the broken parts
3) The seller will supply the buyer the guide service on the operation of the machine
4) The seller will respond within 2 hours if the machine goes wrong in production
5) If required, the seller will dispatch technician to buyer’s country for installation guide, commissioning & adjusting the machine and training the workers on condition that the buyer affords all the cost from China to the buyer’s company including food, accommodation, transportation, etc. and extra USD100 per day per person for the service
