High precision Check Weigher Machine In grain industry , 3 phases 380V
Introduction
SCW-A type Check Weigher
12 inch color touch screen PC controller
Monitor
12-inch touch screen, easy to operate
Graphs show data analysis
Product setup and calibration
Distributed guided operating instructions for easy operation
Graphical display of weighing data
Product feature self-learning function
Product switching
Two-step quick product selection
Large product storage function
Automatic belt speed adjustment
Diagnosis & Alarm
Universal self-diagnostic tool
Programmable alarm output settings
Data & Security
Product data classification analysis by shift, day, month, year or product name
Multi-level password protection
SSCW-B Type Checker Weigher- 6 inch LCD controller
Main features
6-inch graphic LCD display with touch keypad
Easy product setting and calibration
Fast product switching
Self-diagnostic function
Comprehensive statistical functions
Multi-level password protection
Flexible alarm output configuration

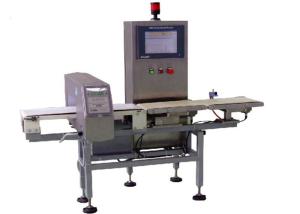

SCW-C Type Check Weigher
Weight and metal double detection
Metal detection only for combi equipment, iron, non-ferrous, stainless steel
Metal detection capabilities vary by product
Weight Checking Machine Features
1 Automatic back to zero to ensure the detection accuracy.
2 Password protection to ensure that non-authorized personnel can not change the data
3 Stainless steel structure, waterproof grade IP65 (IP66 can be customized)
4 The quick installation and removal structure design, easy to clean and maintain.
5 User-friendly features
(1) the preset function of 20 kinds products to meet the multi-product check
(2) 10"color touch screen operation system is simple,intuitive and easy to operate
(3) The weight detection data can be led in computer through U disk
Model
| No. | Model | Name | Size |
| 1 | XYR-FJA | Check weigher A | Height 750mm |
Technical Parameters
| Model | SCW06A/B/C | SCW20A/B/C | SCW30A/B/C | SCW60A/B/C |
| Scope | 6g-600g | 50g-2000g | 100g-3000g | 100g-6000g |
| Accuracy | ±0.4g | ±0.5g | ±1g | ±4g |
| Max. throughput | 200 ppm | 150 ppm | 120 ppm | 60 ppm |
| Belt Length(mm) | 220,300 | 300,400 | 400,500 | 600,800 |
| Belt Width(mm) | 150,200 | 200,250 | 250,300 | 400,500 |
| Table Height(mm) | 600-1000 | 600-1000 | 600-1000 | 600-1000 |
Machine Parts List
| NO. | Part | Brand | Material |
| 1 | Motor | Chengbang Motor | Aluminium alloy (shell) |
| 2 | Square Roller | 60x60mm | Cast Steel Galvanization |
| 3 | Bearing Block | LK | cast iron |
| 4 | Cylinder | Airtac | Aluminium alloy cylinder |
| 5 | Electromagnetic Valve | Airtac | / |
| 6 | Outrigger | 80x40mm | Carbon Steel Spraying |
| 7 | Beam | Thickness:8mm | Carbon Steel Spraying |
| 8 | Guardrail | Thickness:1.5mm | Stainless Steel |
Our Advantages
24/7 online support service;
One-year warranty;
90% of replacement parts can be shipped for next day delivery;
Field installation available.
Packaging
Packing: Usually we use the export standard wooden box and cover the machine with a layer of insulating plastic film.
By sea: Shanghai port is the nearest port, also we can transport to the port which customer pointed
By Air: Hefei Xinqiao Airport
By Express: DHL, TNT, EMS, UPS etc.
FAQ
Q: What kind of Transportation could you provide?And are you able to update the production process Information in time after placing our order?
A: Sea shipping, air Shipping, and international express. And after confirming your order, we would keep you updated of production details of emails and photos.
Q: How long is your warranty?
A: 12 months free warranty, life-long maintenance.
Q: Are you provide product metal parts and provide us technical guidance?
A: Wearing parts, for example, motor belt, Disassembly tool(free) are what we could provide, and we can give you technical guidance.
Q: What are your company requests of payment terms?
A: TT, L/C etc.
Q: What is the validity time of the quotation?
A: 15 days since quotation date
Q: How to select the suitable weight checking machine type for your product:
A: Please contact with our people and tell us information: your product sizes(L*W*H), product weighing range (min and max weight), speed (how many bags per hour), rejector needed or not so that we can select the best suitable check weigher for you.
Q: Is it possible to add checkweighers to the present packaging line? Will there be connecting problems?
A: It will be no problem to equip our checkweigher with your present packaging line. The conveying height is customizable.
